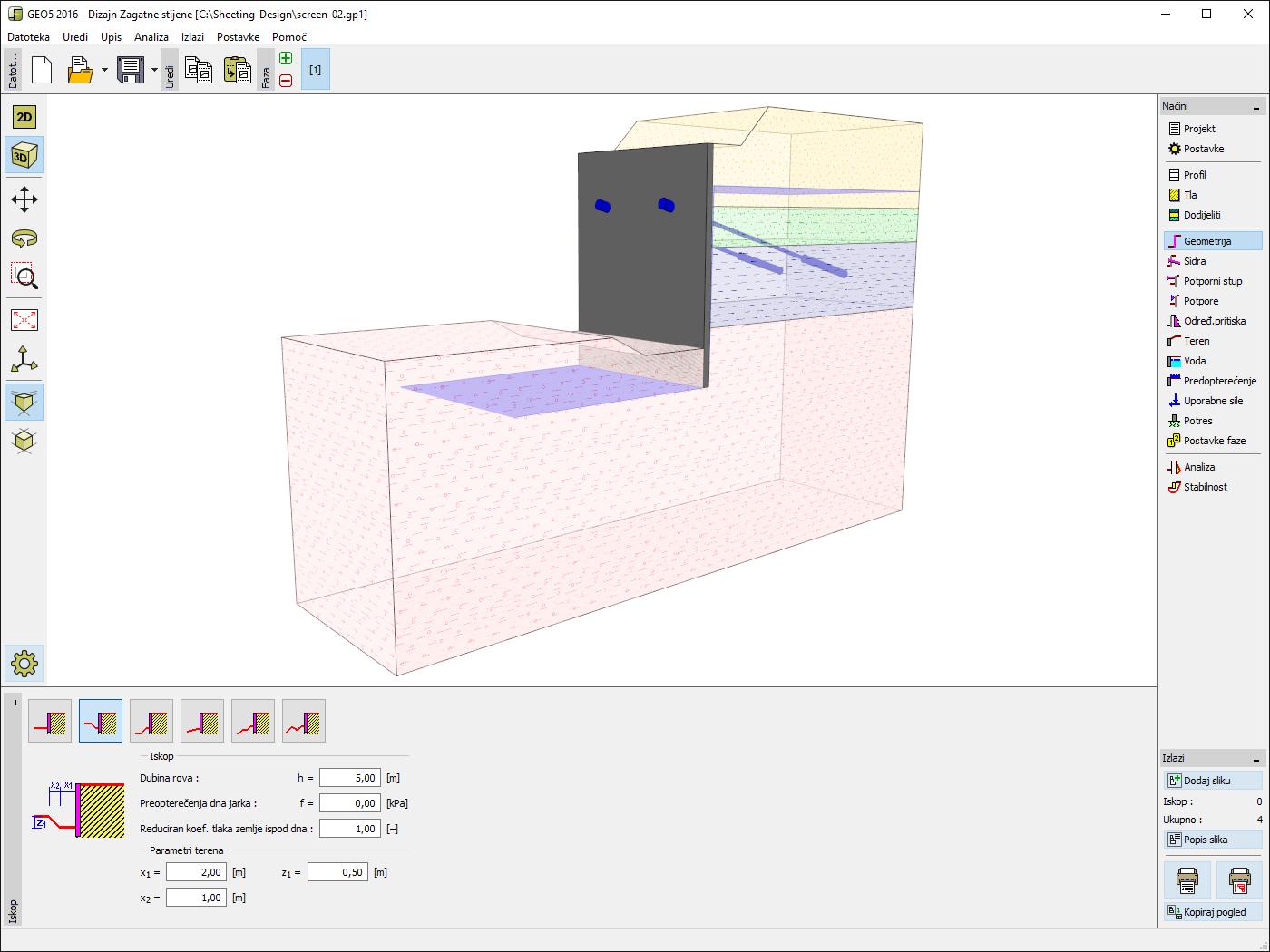

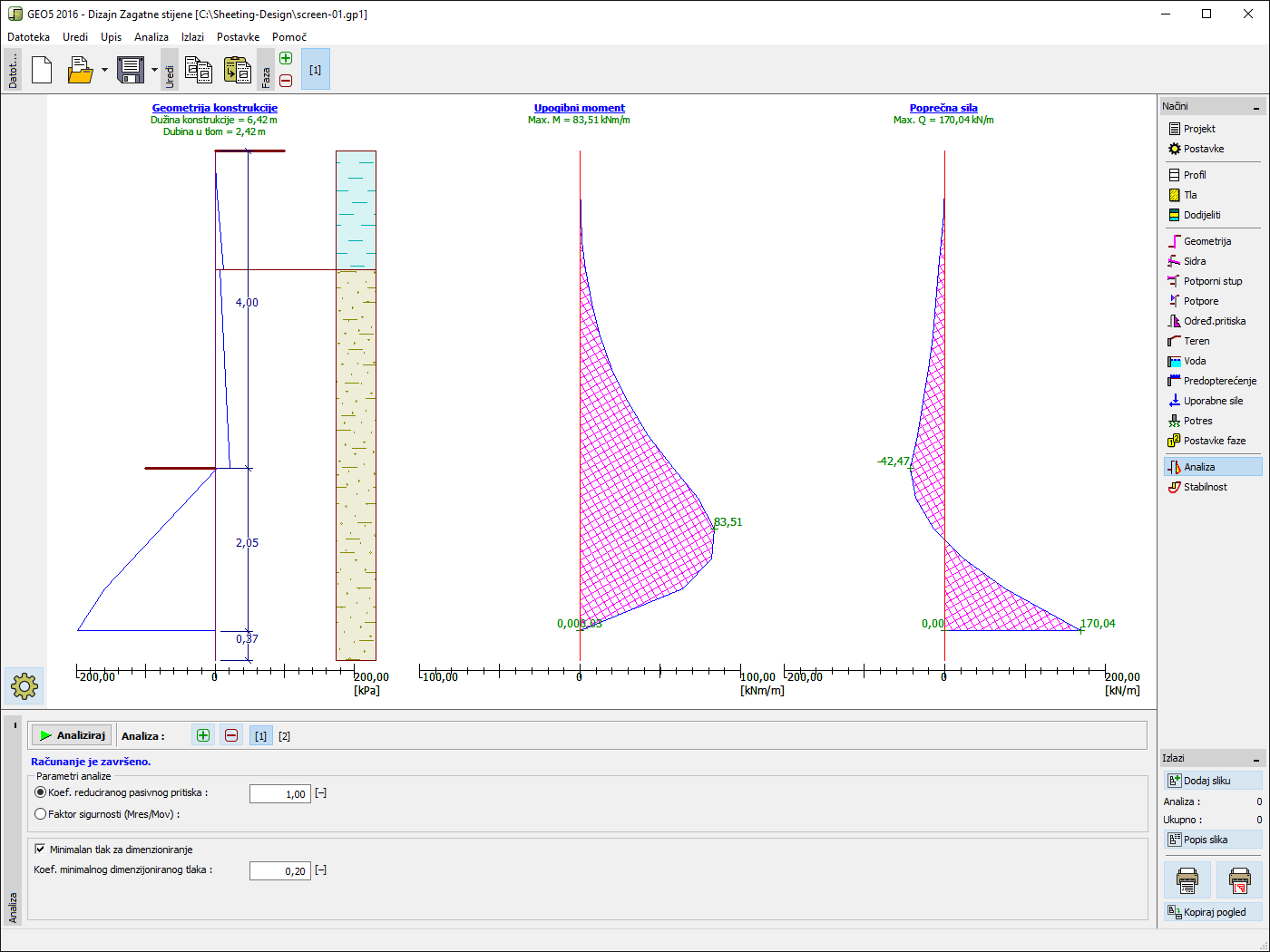

This program is used for the rapid modeling of unanchored walls and for creating a basic model of anchored retaining walls (sheet pile walls, secant pile walls, diaphragm walls, and pile walls). The results display the required anchorage length, internal forces on the structure, and forces in the anchors. The program provides the necessary checks for concrete, steel, and timber cross-sections. Advanced analysis of multiple anchored walls (including structural displacement) can be performed in the GEO5 program Sheet Pile Wall Check (elasto-plastic nonlinear method).
